Dragger 2000
2000 kg towing capacity 800W DC motor drive with differencial gear and SE tires.
Price incl. 80Ah battery and charger.
Permalink Comments off
Archive forHand and Barrel Trucks
Officemobil
Photo: Officemobil
The Officemobil with 200 kg payload, 180W DC motor, differencial gear SE tires incl. 2 loading areas max. 650 x 1200 mm. Price with batteries 44Ah and charger.
Technical Data
Width:
Weight:
Loading Area: 650 x 1200 mm
Max payload: 200 kg
Drive: DC 180W
Permalink Comments off
Jack
Technical data
Up to 2000 kg lift capacity and 4000 kg towing capacity. 1200W AC Motor. Battery system 135 Ah.
IEB HF battery charger Filon Futur M. Lift height and
coupling system for Customer request
Permalink Comments off
Scooter
Technical Data
Lift 400 kg and 600 kg towing capacity
Drive with differential gear with DC motor 500W
Maintenance-free gel battery 24V 36 Ah HF-Impulse-S battery charger 24V 6A
Permalink Comments off
Barrel XL
300 kg payload 800W DC motor drive with differential gears pneumatic tires. Price without battery and charger.
Technical Data
Width: 670 mm
Weight incl. battery: 300 kg
Speed: to 5 km/h
Gradient: 5%
Max payload: 300 kg
Batteries: 2 x 12 V, 105 A/h
Range: ca. 20 km
Drive: DC 800 W
Permalink Comments off
Barrel
300 kg payload 500W DC motor drive with differential gears pneumatic tires. Price incl. 50Ah battery and charger.
Technical Data
Width: 670 mm
Weight incl. battery: 80 kg
Speed: to 5 km/h
Gradient: 5%
Max payload: 300 kg
Batteries: 2 x 12 V, 50 A/h
Range: ca. 20 km
Drive: DC 500 W
Permalink Comments off
Dragger 600/ 1500
Our electric sliding help. „Dragger“ can roll containers and other rolling objects without physical effort anywhere.
Optional second battery (30 kg)
Technical Data
Width: 470 mm
Length: 700 mm
Height: 1100 mm
Wheel size: 3.00 – 4
Weight incl. battery: 74 kg
Speed: to 7 km/h
Gradient: 2%
Max payload: 600/1500 kg
Batteries: 2 x 12 V, 30 A/h
Range: ca. 10 km
Drive: DC 500/800 W
Brakes: Counterflow/magnet
Electronics: Dynamic R90
Dragger 600/ 1500 Video
Connection System to Dragger 600 / 1500
Permalink Comments off
Kuli

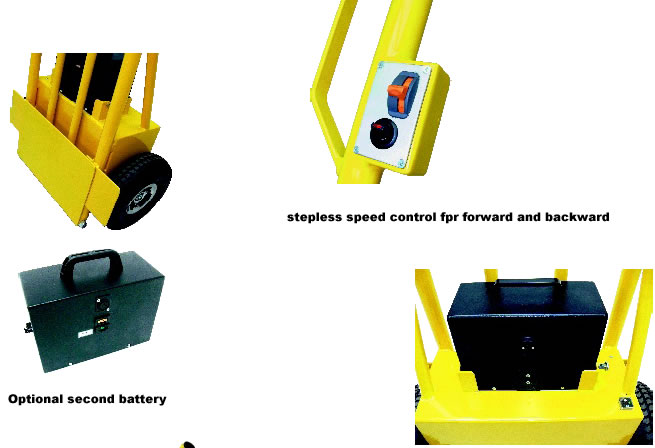

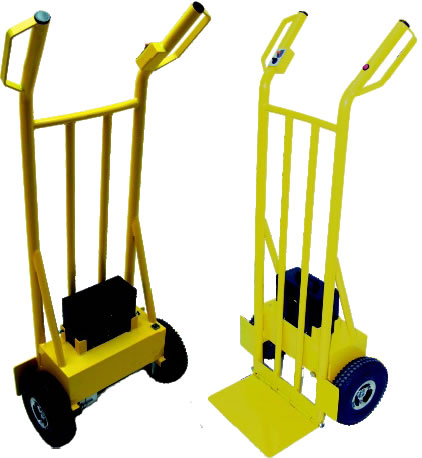

„Kuli“ an electric sack barrow.
A trolley is a practical aid, but if the to be carried Load is too heavy or gradients are overcome, the device Operator quickly to the limit. Then our hand truck with electric drive „KULI“ the ideal tool. Whether or beer crates Planters: KULI protects the force provides security and saves time. He mastered loads up to 300 kg. The driving speed allows the operator to continuously adjust. Can during prolonged use be lifted out of the empty battery box and replaced with a new one.
Technical Data
| Kuli | Kuli Pro | |
|---|---|---|
| Frame | Steel | Aluminium/Plastic |
| Width | 670 mm | 480mm |
| Length | 500 mm | 600 mm |
| Height | 1420 mm | 1320 mm |
| Weight without battery | 40 kg | 29,5 kg |
| Shovel L x W | 250 x 400 mm | 245 x 220 mm |
| Speed | up to 6 km/h | up to 6 km/h |
| Gradient | 5 %/ 10 % / 20 % | 5 %/ 10 % / 20 % |
| Payload | 300 kg / 150 kg / 75 kg | 250 kg / 150 kg / 75 kg |
| Drive | DC Motor 24V 400 W | DC Motor 24V 400 W |
| Gearing | 1 to 25 | 1 to 25 |
| Brake | Against current / magnetic | Against current / magnetic |
| Steering mechanism | Dynamic R90 24V 90A | Dynamic R90 24V 90A |
Battery weight:
Lithium = 6,3 kg
Lead-Gel = 9,1 kg
Permalink Comments off
